Characteristic
high performance

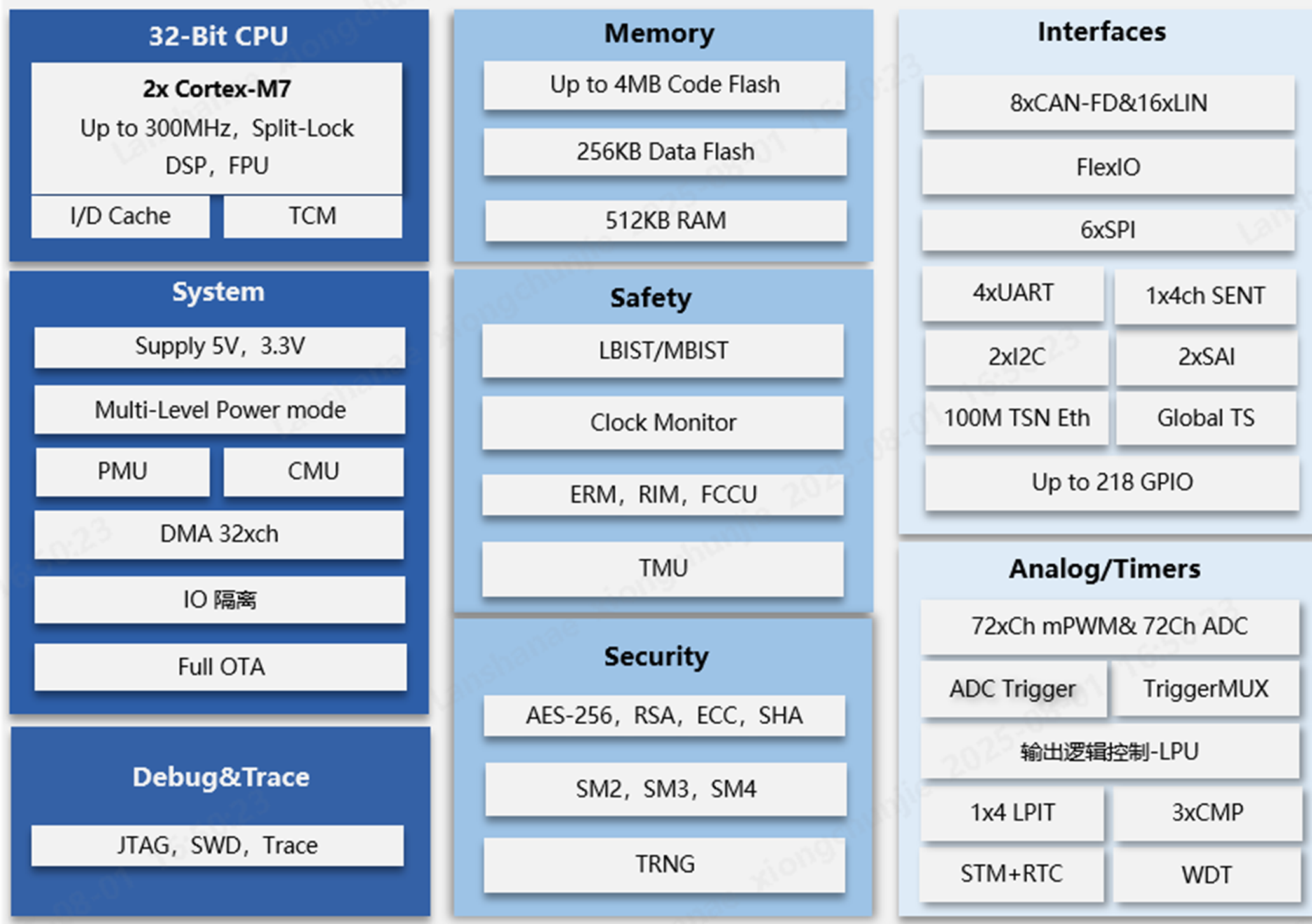

Equipped with ARM CORTEX M7 core, with a clock frequency of up to 300 MHz, one Ethernet port with TSN support function, 8 CANFD channels, and configured with motor output logic control
Flexible and scalable product portfolio
2MB~4MB Pflash, Covering multiple application scenarios and cost requirements
LQFP100/144/176, packaged in BGA256, compatible with the same package pins
Safe and Reliable
Built in independent security module, compliant with EVITA FULL
Obtained AEC-Q100 Grade 1 certification
Up to ASIL D functional safety level
Rich software and ecological support
Timely and effective technical support
Equipped with basic development kit and middleware
Provide FMEDA and functional safety documentation
Rich third-party debugging and software ecosystem partners
