MCU

LS-E14x

The E14 series is a cost-effective entry-level product series for Lanshan MCU, targeting applications such as body control, digital keys, seat control, wireless charging, thermal management, cabin, and more T-BOX， Intelligent surfaces and various applications of new energy.

This series is equipped with M4F core, with a main frequency of 160MHz, an independent security module, supports asymmetric signatures and services, and provides secure boot, key management, and secure encryption and decryption services.

The E14 series offers 256KB~2MB PFlash, 64KB~256KB RAM, 256KB DFlash, and is equipped with abundant peripherals and I/O resources. This product meets the reliability requirements of AEC-Q100 grade 1 and complies with the functional safety requirements of ISO-26262 ASIL-B products.

Characteristic
Series functional block diagram
Application

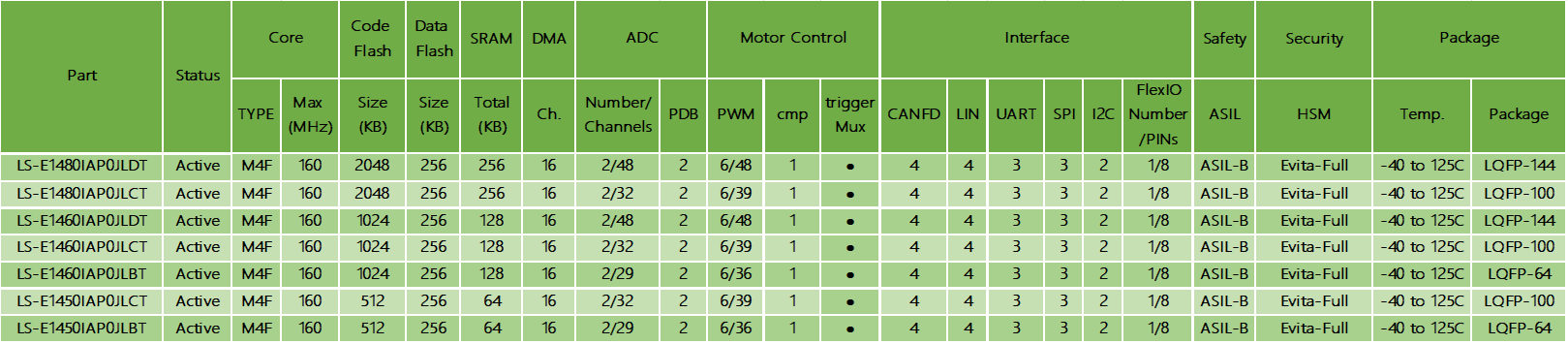

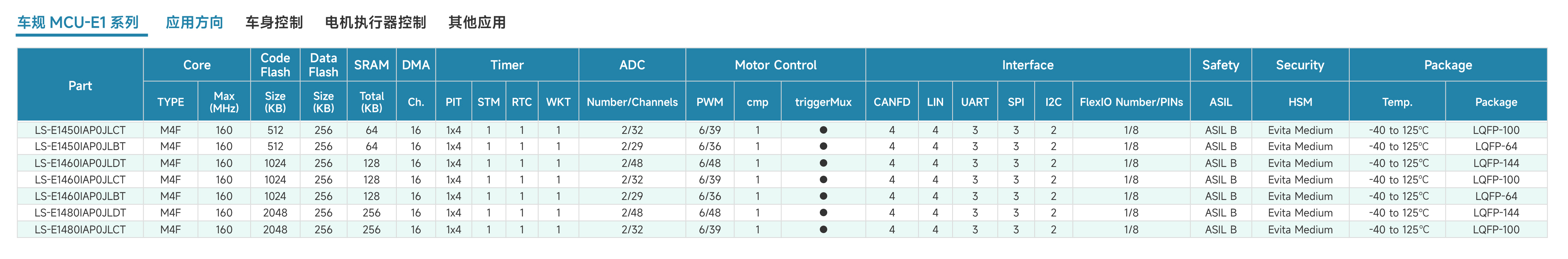

Product Selection Table

Characteristic

cost-effective

Equipped with ARM CORTEX M4F core, 160 MHz, built-in DSP, floating-point instructions, and protocol stack processing that meets certain computing power requirements

Flexible and scalable product portfolio

256KB~2MB Pflash, Covering multiple application scenarios and cost requirements

LQFP64/100/144 package, compatible with the same package pins

Safe and Reliable

Built in independent security module, supports asymmetric signature and verification, supports national encryption algorithms, and has obtained FIPS and SESIP certifications

Obtained AEC-Q100 Grade 1 certification

Up to ASIL B functional safety level

Rich software and ecological support

Timely and effective technical support

Equipped with basic development kit and middleware

Provide FMEDA and functional safety documentation

Rich third-party debugging and software ecosystem partners

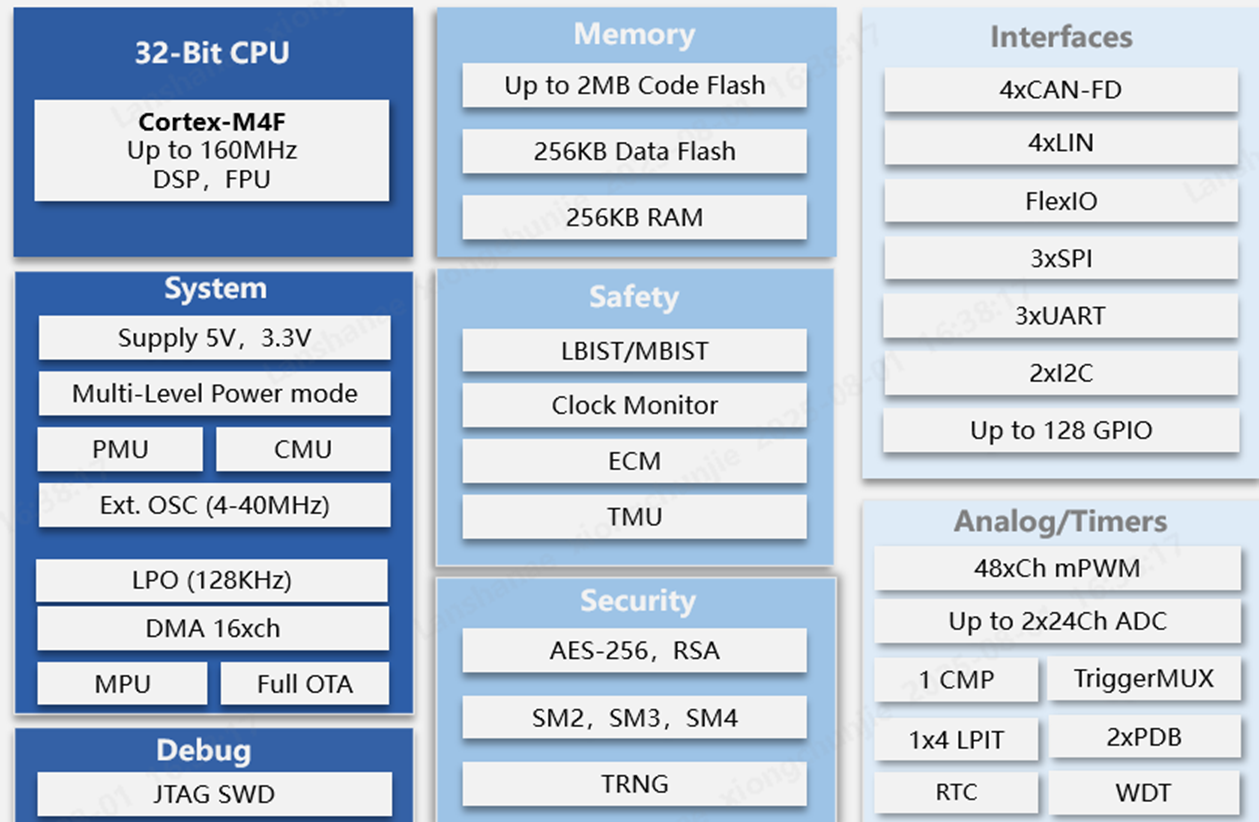

Series functional block diagram

Application

Vehicle Domain - Electric Tailgate Controller PLGM

Body Domain - Seat Controller SCM

Body Domain - Traditional BCM
