MCU

LS-E10x

The E10 series is an entry-level product series of Lanshan MCU with ultimate cost-effectiveness, targeting applications such as vehicle control, doors, windows, air conditioning control, lighting control, small and medium power pumps, fans, etc.

This series is equipped with M0+core, with a main frequency of 64MHz, an independent security module, and provides secure boot, key management, and secure encryption and decryption services.

The E10 series offers 64K~256KB PFlash, 16KB~32KB RAM, and 32KB~64KB DFlash, equipped with abundant peripherals and I/O resources.

This product meets the reliability requirements of AEC-Q100 grade 1 and complies with the functional safety requirements of ISO-26262 ASIL-B products.

Lanshan provides related development kits, FMEDA, and various functional safety documents to help achieve the highest ASIL-B level functional safety applications.

Characteristic
Series functional block diagram
Application

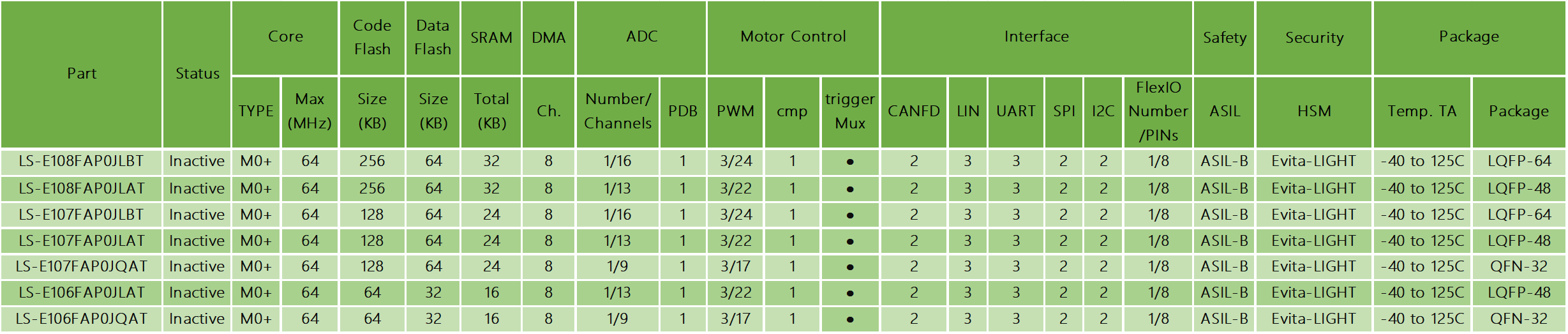

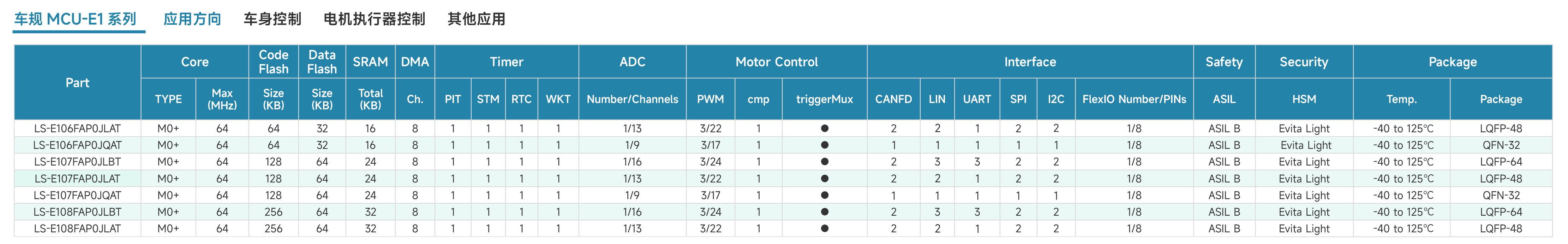

Product Selection Table

Characteristic

Ultimate cost-performance ratio

Equipped with high-efficiency ARM Cortex M0+core, helping customers upgrade from traditional 8/16 bit to 32-bit cost-effective MCU product series

Flexible and scalable product portfolio

64KB~256KB Pflash, Covering multiple application scenarios

LQFP32/48/64 package, compatible with the same package pins

Safe and Reliable

Built in independent security module, supporting hardware secure boot and secure services

Obtained AEC-Q100 Grade 1 certification

Up to ASIL B functional safety level

Rich software and ecological support

Timely and effective technical support

Equipped with basic development kit and middleware

Provide FMEDA and functional safety documentation

Rich third-party debugging and software ecosystem partners

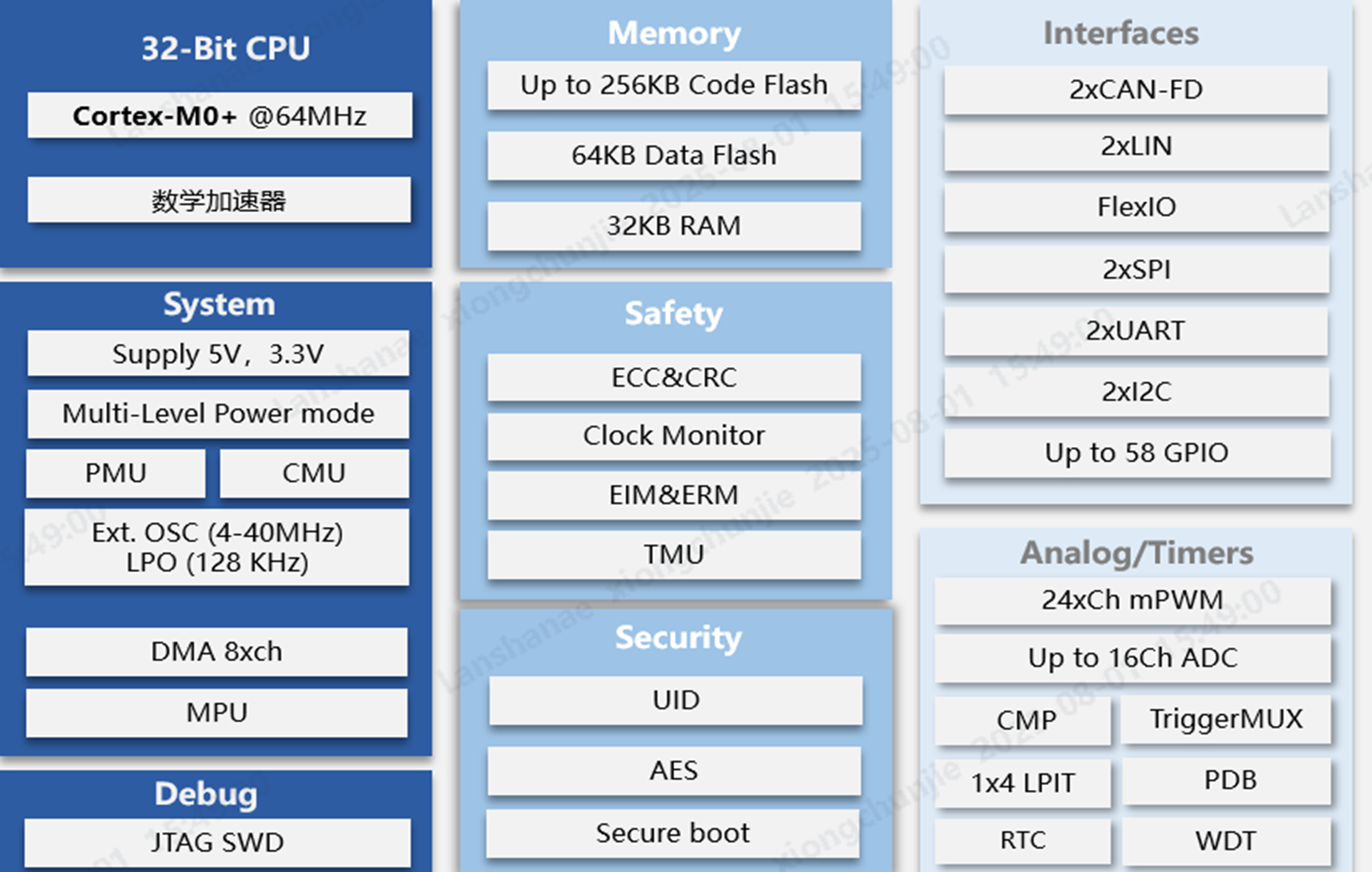

Series functional block diagram

Application

Vehicle Domain - Electric Tailgate Controller PLGM

Body Domain - Seat Controller SCM
